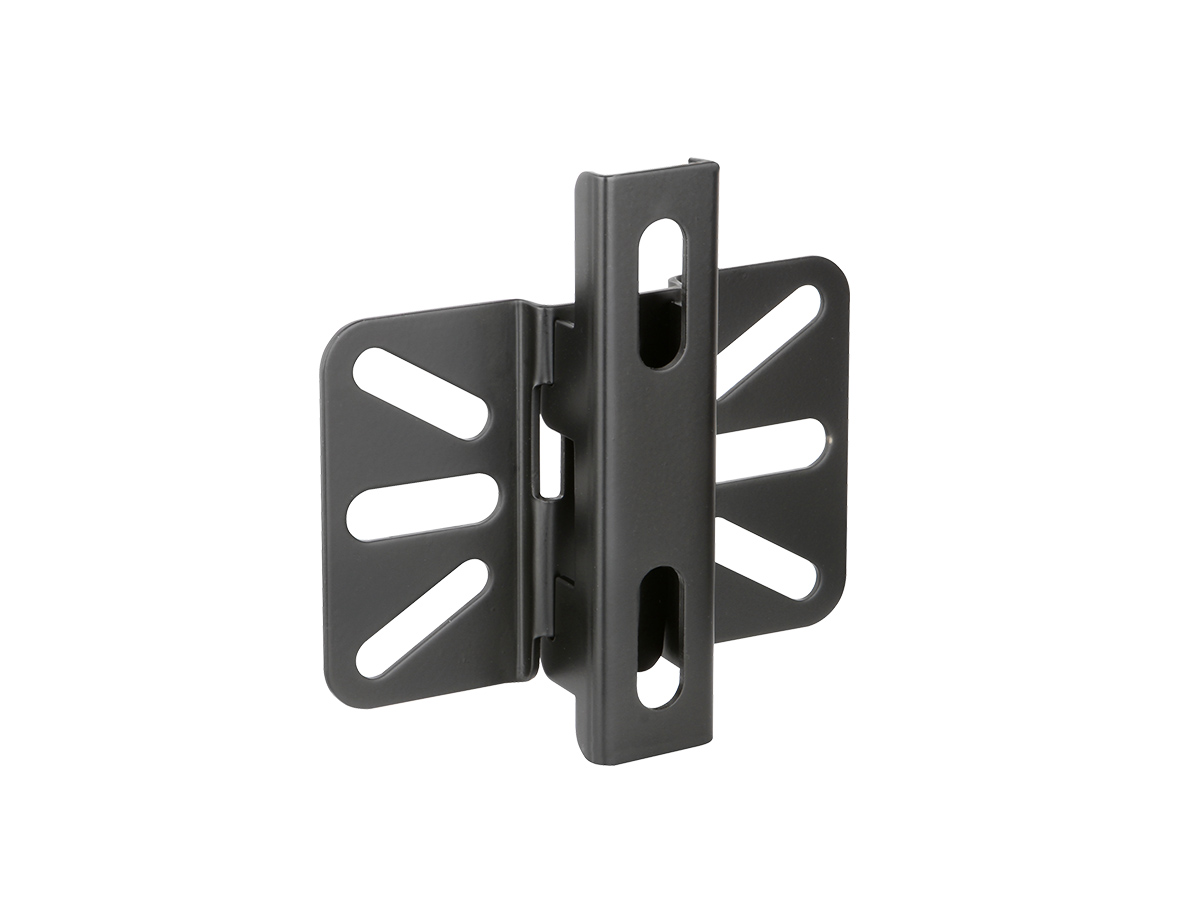

JINGLE H15 | 15KG speaker wall bracket

H15 Wall-Mounting Benefits: Ensures that speakers or sound columns fit perfectly flush against the wall, leaving only a minimal 30-millimeter gap. This detail not only guarantees pure and clear sound transmission but also makes your audio equipment appear to float on the wall, creating an unprecedented sense of technological beauty.

Robust Load-Bearing Capacity: With a load capacity of up to 15 kg, it accommodates speakers or sound columns of various sizes and weights. Installation is quick, secure, and reliable, providing solid support for your audio system.

Flexible Compatibility with Multiple Speakers: Suitable for speakers with vertical or horizontal screw hole spacing of up to 100 mm on the back panel. This design gives you greater freedom during installation, eliminating concerns about mismatched screw positions between your speakers or soundbars and the wall mount.

Versatile Wall Mount: Both components of the wall mount can be used as wall bases. This design accommodates speakers or soundbars of different sizes and shapes, enabling a variety of installation options.

Technical Parameters

H15

Product Type
Versatility
Bearing
Distance from Wall
Appearance
Material
Accessories
Applications
Dimensions (W x H x D)
NW (1 PCS)

:
:
:
:
:
:
:
:
:
:

Ultra-slim Wall-Mount Bracket
Optional horizontal or vertical mounting points
≤15 kg
30mm
Black
Steel plate
None
Wall-mounted speakers / Sound columns
120x120x30mm
0.21 kg

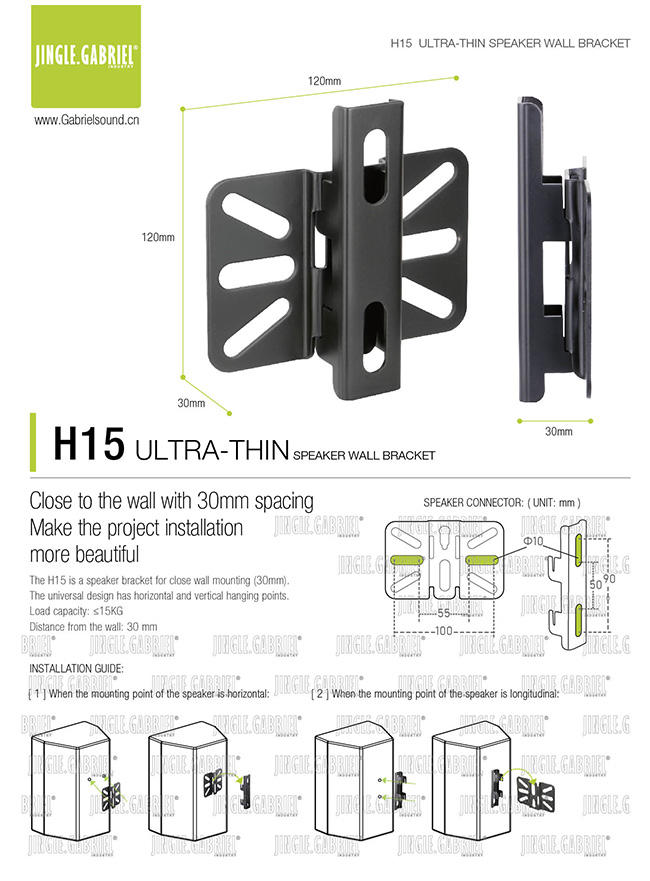

installation methods:
