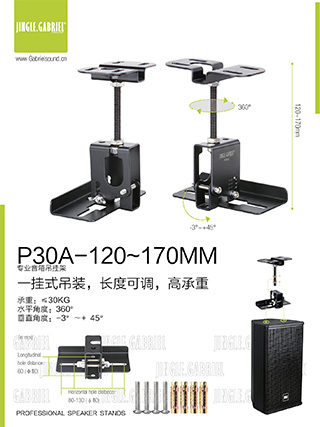

JINGLE P30A | 30KG Speaker hanger Screw version

Professional speaker hanger
P30A
speaker hanger
MULTI-ANGLE ADJUSTMENT
QUICK INSTALLATION
PROFESSIONAL PERFORMANCE

Using in:Bearing ≤30KG speaker

Installation method: Sturdy ceiling

Adjustable angle: horizontal and vertical

Quick installation, classic upgrade, safe and easy-to-use professional speaker hanger

Gabriel has always insisted: easy mounting, safe and easy to use, and no longer need to lift the speaker for a long time for mounting. The installation can be completed within 3 minutes.
5 major advantages, worthy of your professional choice.
# Multi-angle adjustment
# Improve engineering installation speed
# One hanging type hoisting
# Professional bearing 30KG
# Cost-effective choice

*Based on actual use test by professional installation technicians.

Feature

Stronger
P30A uses a new generation of professional speaker suspension structure design.
Use thick cold-rolled steel plate to protect your sense of security

Hoisting test: It is faster to install than the same type of speaker hanger, and the material is tough and durable.

Easier
One-hung design, the speaker only needs one support, one hang and tighten to complete the installation.
After testing, the installation of P30A is more convenient and the angle adjustment is simpler.

More convenient
The vertical angle can be easily adjusted with the hand-tightening nut: 0°~+30°.
360° horizontal rotation, the speaker adjustment is more convenient.

The P30A is a flexible speaker hanger that can be used with screws of different lengths.
It is recommended to choose the screw diameter: 10MM, 12MM.

P30A

Technical Parameters		P30A
Bearing Horizontal angle Vertical adjustment angle Matchable extension screw size Exterior Material 　 quality Kits Using in Dimensions Net weight (1 pc) Package dimensions Gross weight	: : : : : : : : : : : :	≤ 30 Kg 360° 0° ~ +30° Φ 10 ~ Φ 12 mm black Cold rolled steel sheet YES Hanging speakers 150 x 70 x 90mm(WxHxD) 0.40 Kg 330 x 295 x 270 mm/ 30 pairs 27 Kg/ 30 pairs

P30AL

Technical Parameters		P30AL
Bearing Horizontal angle Vertical adjustment angle Matchable extension screw size Exterior Material 　 quality Kits Using in Dimensions Net weight (1 pc)	: : : : : : : : : :	≤ 30 Kg 360° 0° ~ +30° Φ 10mm black Cold rolled steel sheet YES Hanging speakers 150 x 170 x 90mm(WxHxD) 0.67 Kg

Installation Steps


The P30A is a speaker hanger that is angle-accurate and easy to hang. The product is strong and designed with molds and advanced technology. Recommended extension screw diameter: 10MM, 12MM
