JINGLE P30C | 30KG Ultra-thin speaker hanger

Professional speaker hanger

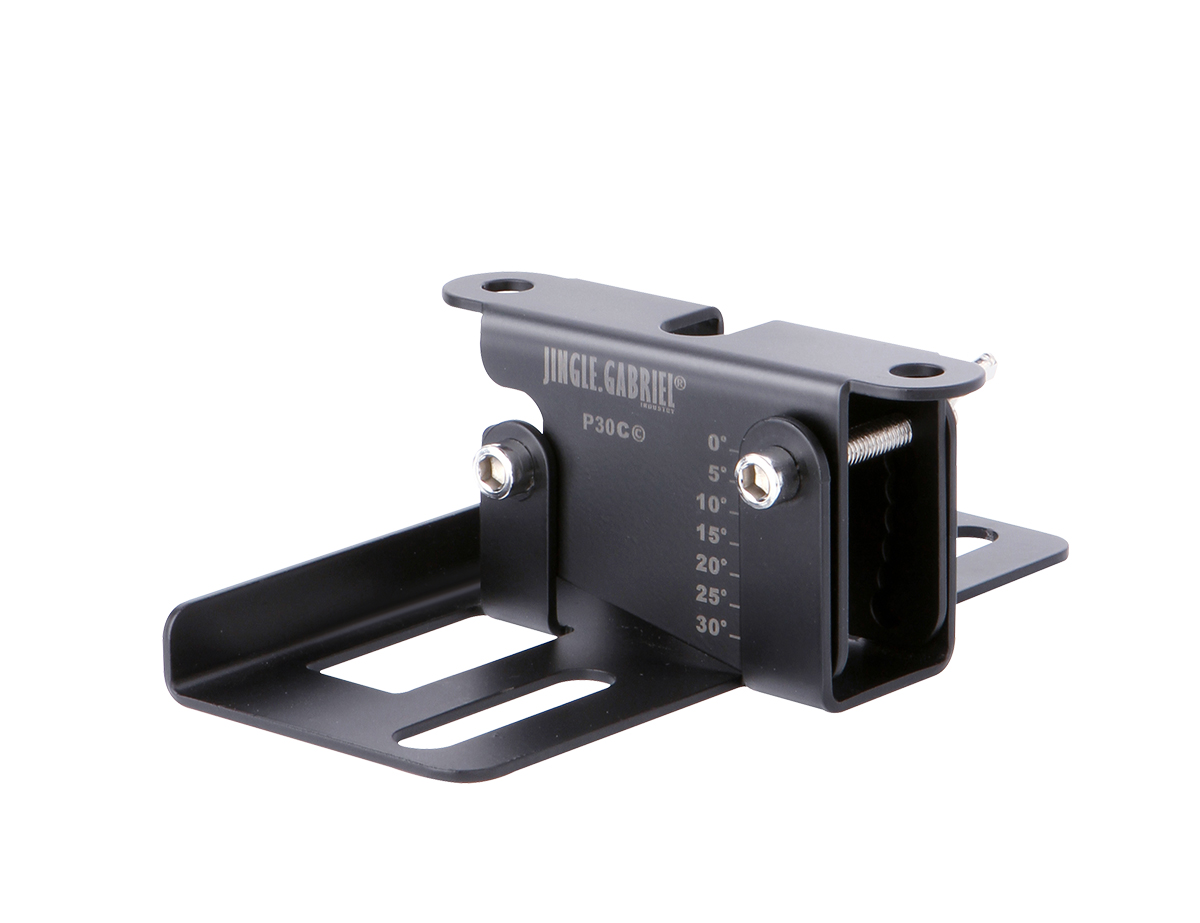

P30C
speaker hanger
MULTI-ANGLE ADJUSTMENT
QUICK INSTALLATION
PROFESSIONAL PERFORMANCE

Using in:Bearing ≤30KG speaker

Installation method: Sturdy ceiling

Adjustable angle: horizontal and vertical

Quick installation, classic upgrade, safe and easy-to-use professional speaker hanger

Gabriel has always insisted: easy mounting, safe and easy to use, and no longer need to lift the speaker for a long time for mounting. The installation can be completed within 3 minutes.
5 major advantages, worthy of your professional choice.
# Multi-angle adjustment
# Improve engineering installation speed
# One hanging type hoisting
# Professional bearing 30KG
# Cost-effective choice

*Based on actual use test by professional installation technicians.

Feature

Stronger
P30C uses a new generation of professional speaker suspension structure design.
Use thick cold-rolled steel plate to protect your sense of security

Hoisting test: It is faster to install than the same type of speaker hanger, and the material is tough and durable.

Easier

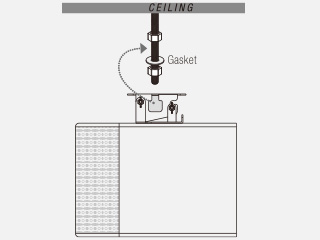

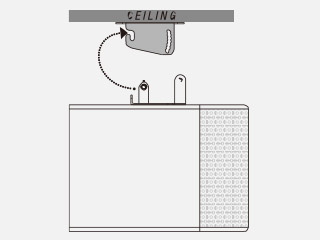

One-hung design, the speaker only needs one support, one hang and tighten to complete the installation.
After testing, the installation of P30C is more convenient and the angle adjustment is simpler.

More convenient
The vertical angle can be easily adjusted with the hand-tightening nut: 0°~+30°.
360° horizontal rotation, the speaker adjustment is more convenient.

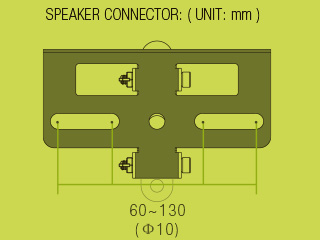

The P30C is a flexible speaker hanger that can be used with screws of different lengths.
It is recommended to choose the screw diameter: 10MM, 12MM.

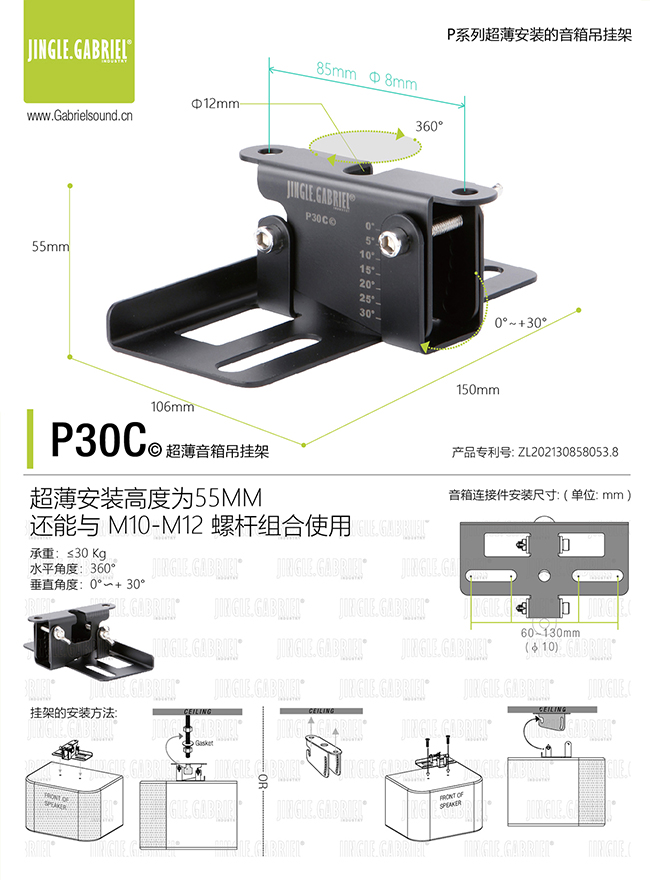

P30C

Technical Parameters		P30C
Bearing Horizontal angle Vertical adjustment angle Matchable extension Exterior Material quality Kits Using in Dimensions Net weight (1 pc) Package dimensions Gross weight	: : : : : : : : : : : :	≤30 Kg 360° 0° ~ +30° Φ10 ~ Φ12 mm black Cold rolled steel sheet YES Hanging speakers 150 x 55 x 106mm(WxHxD) 0.35 Kg 495x335x330mm/40 Pairs， 29.3Kg/40 Pairs, 0.7 kg/1 Pairs

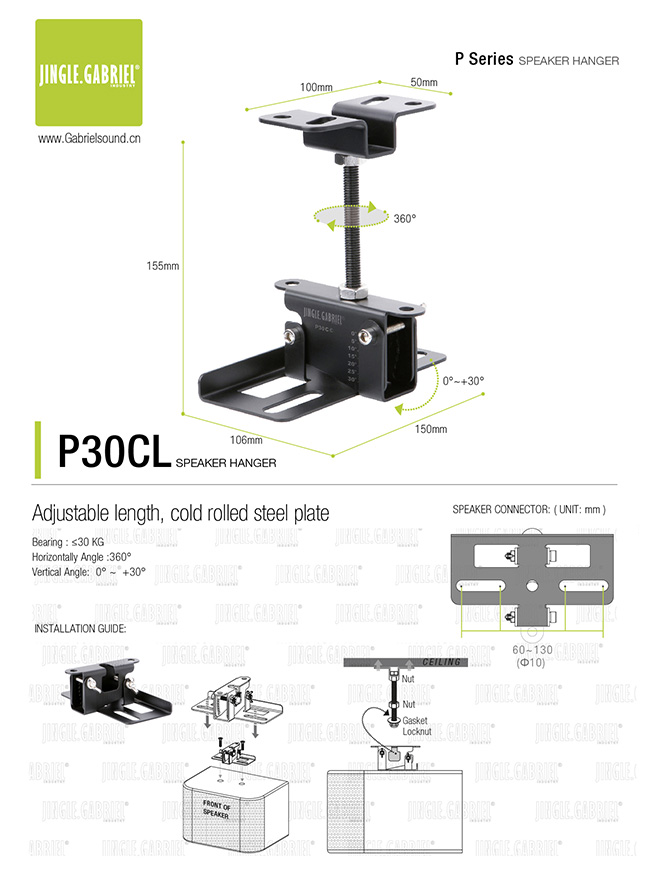

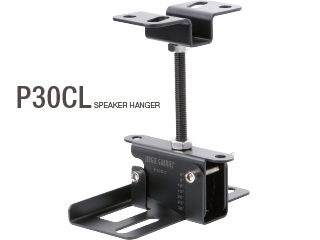

P30CL

Technical Parameters		P30CL
Bearing Horizontal angle Vertical adjustment angle Adjustable distance from ceiling height Matchable extension Exterior Material quality Kits Using in Dimensions Net weight (1 pc) Package dimensions Gross weight	: : : : : : : : : : : : :	≤30 Kg 360 ° 0 °~ + 30 ° 125~155mm (P30C separate installation height: 55mm) Φ 10 ~ Φ 12 mm. Black. Cold rolled steel plate. None. Hang the speaker 150 x 155 x 106 mm (W x H x D) 0.52Kg 495 x 330 x 240mm / 30 pairs 34.8Kg/30 pairs, 1.11kg/1 pairs
