JINGLE R5 | 5KG speaker wall mount stand

Professional speaker wall mount stand
R5
Speaker wall mount stand
COMPACT ,SMALL SPEAKER WALL MOUNT PREFERRED

Using in:≤5KG Speakers, lights, other wall mounted equipment

Installation method: wall

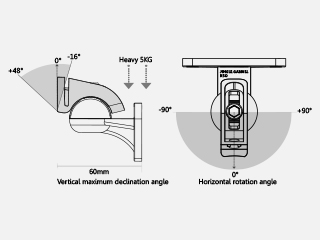

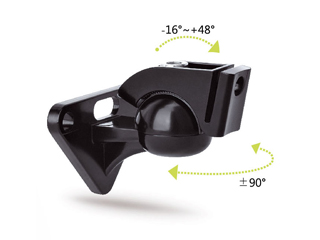

Adjustable angle: horizontal and vertical

Easy to install, multi-angle adjustable, high quality speaker stand

The R5 is a 5 kg speaker wall mount. Compact and convenient, wall-to-wall and easy horizontal/vertical adjustment of the angle you need is the first choice for all types of small wall-mounted speaker hangers.

The speaker pendants developed by Gabriel are designed according to each type of speaker, combined with the distance from the wall, the horizontal swing angle, the vertical depression angle adjustment angle, etc. Our speaker pendants will better meet the accuracy of speaker range positioning and help control the sense of presence and space.

Feature

One-mounted installation, free to adjust and easy to flip. The environmental protection jewelry material is made of die-casting mold.
Simple and easy to install patch cord. Free adjustment is easy to flip. Easy installation makes your project installation quick and easy. Suitable for speakers, lighting, hardware and other products.

Technical Parameters		R5
The biggest bearing Horizontally Angle Vertical adjustment Angle Maximum distance Accessories Net weight (1 Pcs) Material Colour Dimensions Gross weight Using in	: : : : : : : : : :	5 Kg -16°~+48° ±90° 60mm ● 130g Zinc Alloy Black 110 x 72 x 70 mm 0.455kg Speakers \ Lighting \Hardware

Installation Steps

The design of the R5 is versatile, and the following two are basic installation methods:

First, Adjusted and fixed R5 angle: Loosen the set screw with a wrench,fasten.

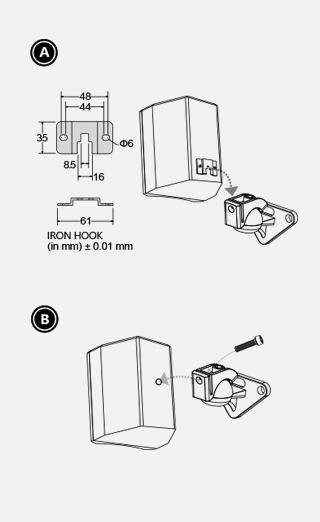

A. Use the iron hook to install on the back of the speaker and then hang directly above R5. (Figure A)

B. If your speaker has a hanging hole, you can put the M6 screws into the R5 speaker connector hole, then hang on the speaker. (Figure B)

Installation of safety rope:
In order to strengthen the safety, the chain or wire rope is prepared for the products.
Fit the one side of the safety rope on the expansion screw of the wall, and fit the other side of the safety rope on the fix screw of the speaker, tighten it to finish the installation.
