JINGLE UP15Ⅱ | 15KG Speaker hanger

Professional speaker hanger
UP15Ⅱ series
15KGS speaker hanger
HANGING IS EASIER AND FASTER

Using in:Bearing ≤15KG speaker, lighting, other ceiling mounting equipment

Installation method: Sturdy ceiling

Adjustable angle: horizontal and vertical

Easy to install, multi-angle adjustable, high quality speaker hanger

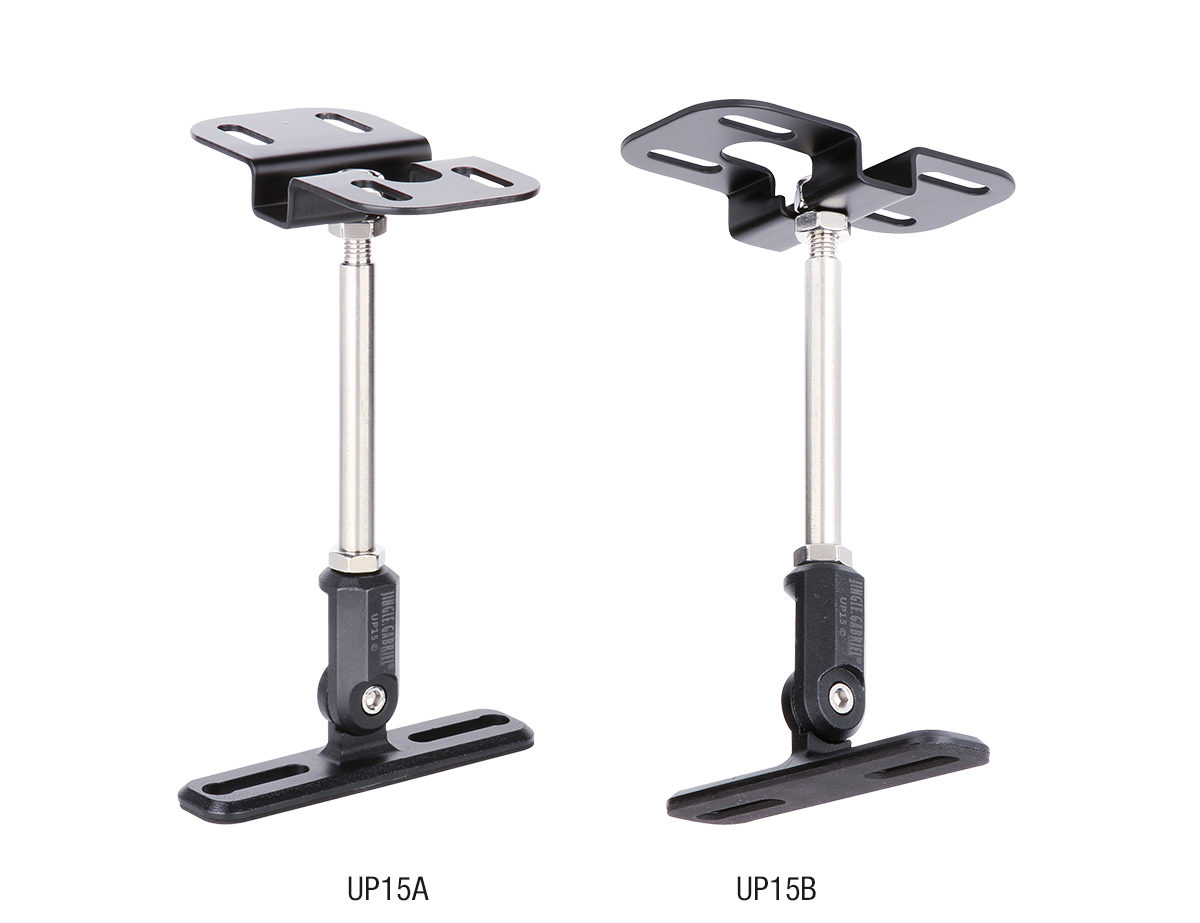

The UP15Ⅱ is a versatile speaker ceiling mount. Easy to use, it can be mounted on the top or back of the speaker. It comes in two versions, the UP15AⅡ is suitable for speakers with vertical hanging holes, and the UP15BⅡ is suitable for speakers with lateral hanging holes.

Feature

The UP15Ⅱ hanger's material is made of stainless steel and cold rolled steel, which is very durable.
The one-mounted installation design of the UP15 speaker stand makes the speaker hanging easier and faster. It is a professional and beautiful high-quality speaker stand.

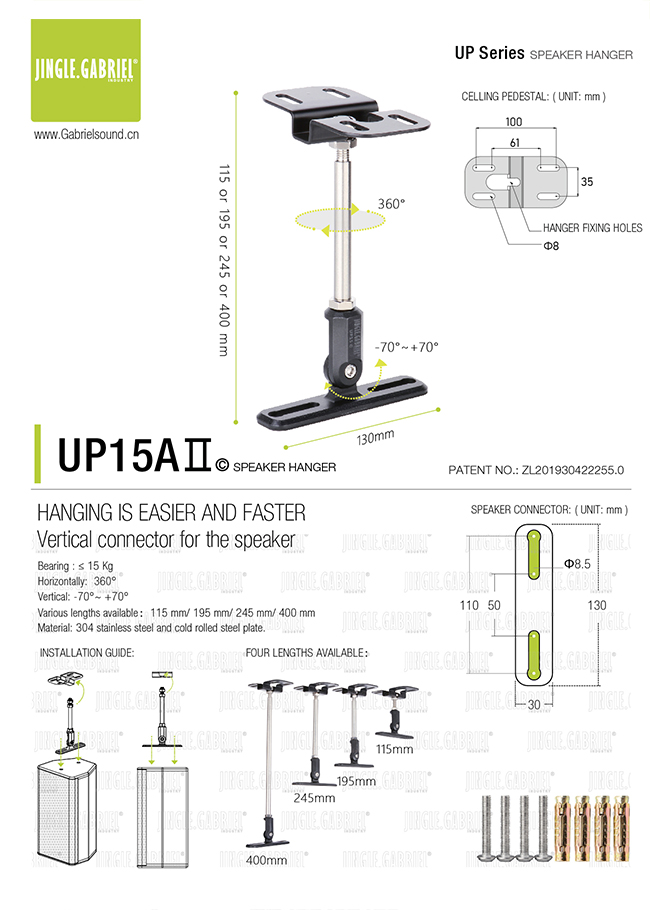

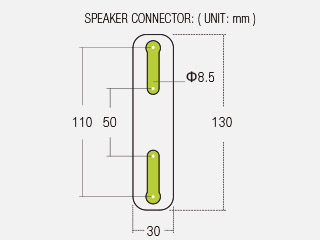

UP15AⅡ

Technical Parameters		UP15AⅡ

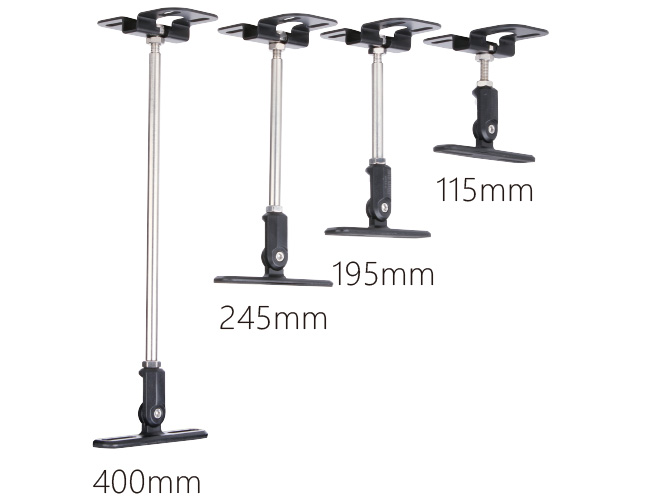

Optional length Applicable installation The biggest bearing Horizontal angle Vertical angle colour Material Kits Dimensions Net weight (1) Package Size Gross weight (1 pair) Using in	: : : : : : : : : : : : :	115mm / 195mm / 245mm / 400mm. The mounting hole of the speaker is longitudinal. ≤ 15 Kg. 360 °. 70 °~ + 70 °. Black. A2 stainless steel + cold rolled steel Screws and tools. 130x115x65 mm (W x H x D). 0.43 Kg. 390 x 137 x 65 mm. 1.34kg. Ceiling speaker

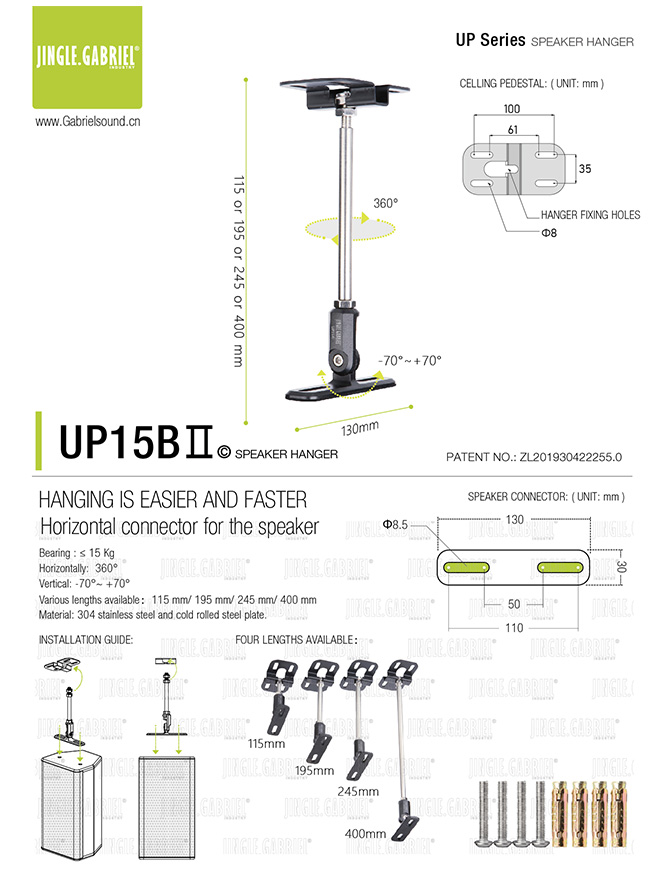

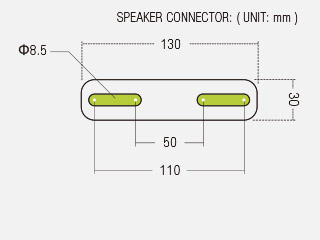

UP15BⅡ

Technical Parameters		UP15BⅡ

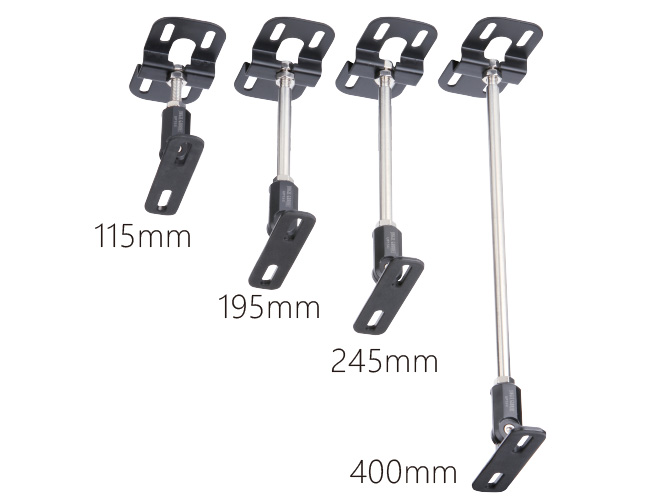

Optional length Applicable installation The biggest bearing Horizontal angle Vertical angle colour Material Kits Dimensions Net weight (1) Package Size Using in	: : : : : : : : : : : :	115mm / 195mm / 245mm / 400mm. The mounting hole of the speaker is horizontal. ≤ 15 Kg. 360 °. -70 °~ + 70 °. Black. 304 stainless steel + cold rolled steel plate. Screws and tools. 130x115x65 mm (W x H x D). 0.43 Kg. 390 x 137 x 65 mm. Ceiling speaker

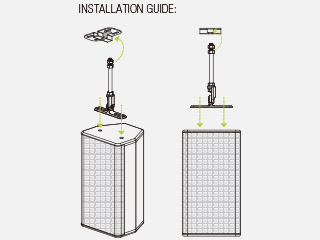

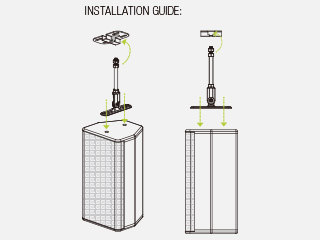

Installation Steps

The design of the UP15 is versatile. The following are the basic installation methods:

Select the appropriate mounting method according to the mounting hole of the speaker, which can be installed on the top or back of the speaker.
1. Assembling the speaker hanger: After adjusting the required angle, fix the screw and the speaker connector with the nut.
2. Installation of the ceiling section: Mount the ceiling part to the sturdy concrete ceiling with expansion screws.
Installation of the speaker section: Tighten the speaker connector by aligning it with the speaker mounting hole.
3. Hang the speaker to the ceiling unit and tighten the screws to complete the installation.
